PRODUCTS
Three product lines — distributed acoustic sensing (DAS), BOTDA Brillouin analyzers and high-speed distributed acquisition cards — fully self-controlled from core boards to portable instruments.
Portable and rack-mount instruments: the DAS acoustic sensing instrument reaches 110 km at 5.8 kg, while the BOTDA Brillouin analyzer reaches 104 km with ±1 °C and ±20 με accuracy. Fibre in, results out — no external optics to align.
DAS-22-80KM
DAS-22-80KM is a portable distributed acoustic sensing instrument with up to 110 km single-channel range, 3–26 m spatial resolution, 0.01 Hz–100 kHz frequency response, 5.8 kg weight and 33–55 W power consumption, supporting polarization, spatial and frequency diversity reception with coherent-fading suppression.
View specifications
BOTDA-002
BOTDA-002 is a Brillouin optical time-domain analysis instrument for distributed temperature and strain monitoring: 100 m to 104 km sensing fibre per channel, ±1 °C temperature accuracy, ±20 με strain accuracy, spatial resolution from 0.8 m at 25 km range to 3.2–26 m at 100 km range, both BOTDA and BOTDR operation, real-time dual-channel acquisition, in a 19-inch 2U chassis.
View specificationsCore acquisition and demodulation boards for instrument makers and integrators: 500 MSPS sampling at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, all core chips domestically sourced.

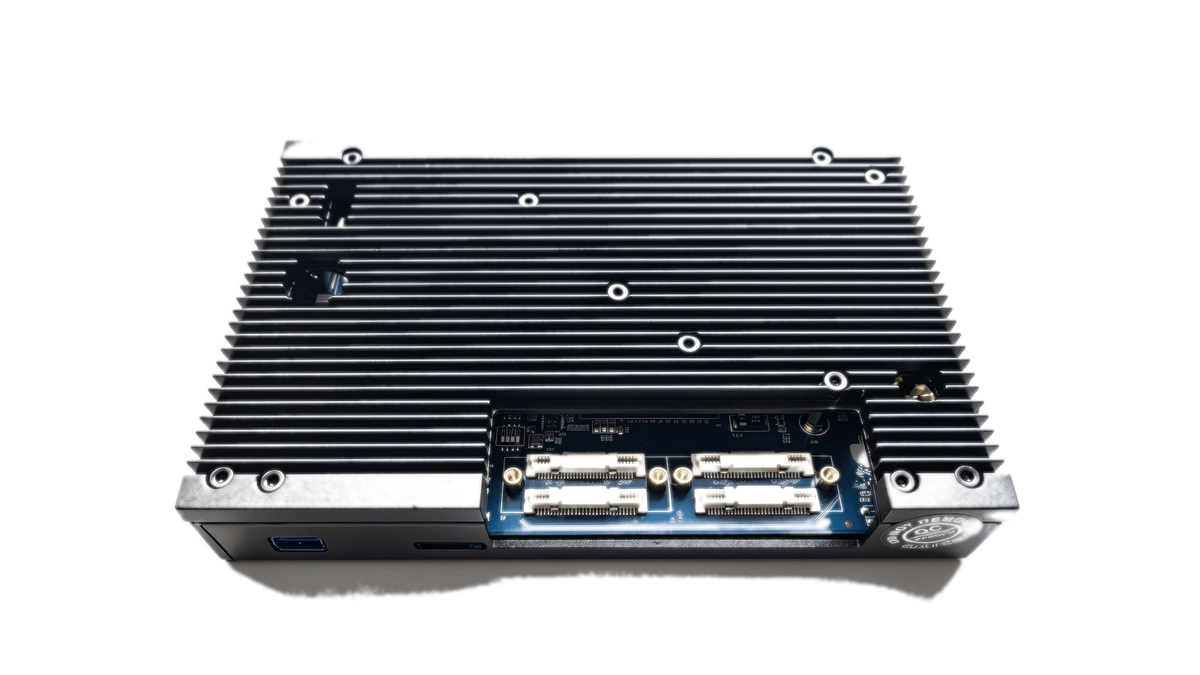

ZC-BOTDA-001
ZC-BOTDA-001 is the acquisition and analysis board designed for distributed Brillouin temperature and strain monitoring: two channels at 250 MSa/s and 14 bit, on-board Golay complementary coding and differential pulse pair encode/decode with averaging, 100 m to 104 km sensing fibre per channel, ±1 °C temperature accuracy, ±20 με strain accuracy, 0.8 m spatial resolution at 25 km range, and both BOTDA and BOTDR operation.
View specifications
ZC-DAS-002
ZC-DAS-002 is a high-speed acquisition and computing card dedicated to distributed fiber-optic vibration sensing: 500 MHz ADC at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, homodyne plus 80M/200M heterodyne demodulation, with fully domestically sourced core chips.
View specificationsNew models are under development — contact us with your requirements.
Tell us your needsChoose an instrument for field deployment with results out of the box; choose an acquisition card if you are building your own system. Send us your range and fibre conditions and we will assess the link.
