PRODUCTS
Core acquisition and demodulation boards for instrument makers and integrators: 500 MSPS sampling at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, all core chips domestically sourced.
Core acquisition and demodulation boards for instrument makers and integrators: 500 MSPS sampling at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, all core chips domestically sourced.

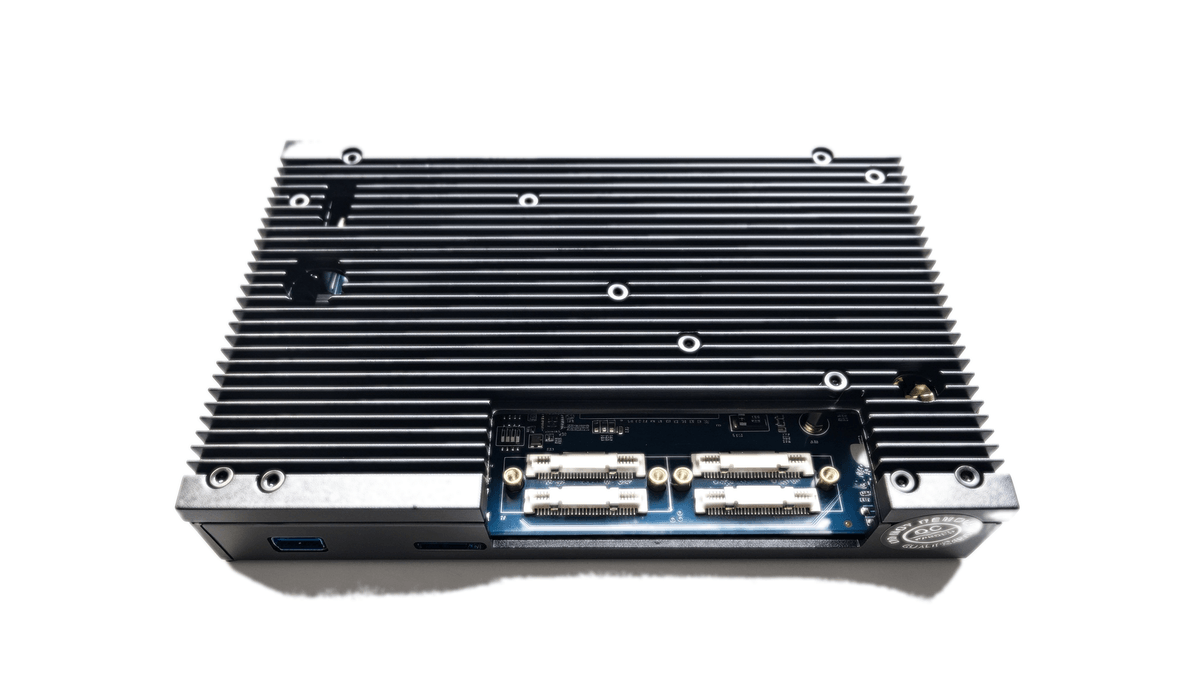

ZC-BOTDA-001
ZC-BOTDA-001 is the acquisition and analysis board designed for distributed Brillouin temperature and strain monitoring: two channels at 250 MSa/s and 14 bit, on-board Golay complementary coding and differential pulse pair encode/decode with averaging, 100 m to 104 km sensing fibre per channel, ±1 °C temperature accuracy, ±20 με strain accuracy, 0.8 m spatial resolution at 25 km range, and both BOTDA and BOTDR operation.
View specifications
ZC-DAS-002
ZC-DAS-002 is a high-speed acquisition and computing card dedicated to distributed fiber-optic vibration sensing: 500 MHz ADC at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, homodyne plus 80M/200M heterodyne demodulation, with fully domestically sourced core chips.
View specificationsNew models are under development — contact us with your requirements.
Tell us your needsChoose an instrument for field deployment with results out of the box; choose an acquisition card if you are building your own system. Send us your range and fibre conditions and we will assess the link.
